LINX SNG FOR SALE DETAILS:

SNG Registration code:
Eutelsat: UKI-1324

Antenna
Manufacturer: Gigasat
Model: DA 150
Size: 1.5 m
Operation Temperature -20 to +60°C
Humidity 150%
Altitude 4,500m

Wind Rating
Operational 60km/h with gusts to 72km/h
Survival 130km/h (stowed)

Antenna Travel
Tx Gain 45 dBi mid-band
Rx Gain 43,5 dBi mid-band

Band/Freq: Ku band

Polarization: Linear, orthogonal transmit & receive.

Power Amplifiers:
Model: Xicom TWT XTRD-400K
Max Power 400 W
Quantity 2

Power Supply
Inputs: 3 phase 32/63 A
Outputs 32 A

Exciter
Manufacturer ADTEC E 91 /NEWTEC AZ 110
Encoder/Encoding: ADTEC E91/NTT HVE 9100
Encoder Inputs SDI
Encoder Outputs 75
Modulator NEWTEC
Encryption BISS1

Decoders: Ericsson RX 8200 x 2
Upconverter: Peak P714 x 2

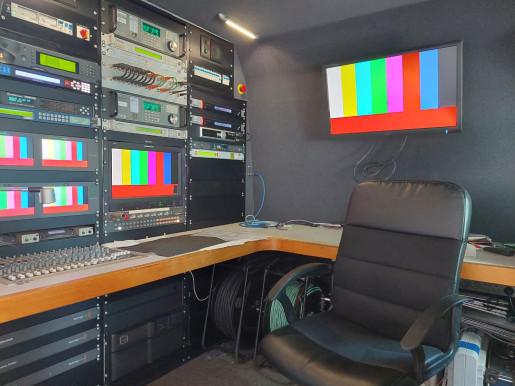

A/V Monitoring
Blackmagic SmartView Duo SDI monitors
Blackmagic Micro Videohub A/V router
Iiyama ProLite B2776HDS 27″ HD monitor
JVC DT-E17L4G 17″ HD monitor
Mackie 1604 VLZ3 sound mixer
Fostex 6301B audio monitors
KWS Electronics Varos 109 spectrum monitor
TSL PAM-1 Dolby E monitor

Comms
Prospect K6R talkback
Prospect IFB kit+B1
Burnside GSM units

Control
Intellinet 16 port Gigabit intelligent switch
Blackmagic ATEM Television Studio switcher
Packard Bell Easynote P5WS0 laptop

Onboard Generator: Built In 5 kWa
Power distribution panel: Datavision DVS 12.1
UPS: Liebert GTX3-5000RT230

Vehicle:
Mercedes Sprinter 311 CDi – 2003
Mileage: 290,000
Engine overhauled: 2017
